DFM review proposal
Reassess draft geometry for a small trial batch
The design was intended for die casting and includes a 5° draft in the marked area. The current project is a small trial batch.
View case03 / Engineering cases (DFM)
Engineering decisions. In detail.
Drawing reviews and process coordination show our approach to engineering, supplier integration and project control.
DFM review proposal
Check tool access around the dovetail groove

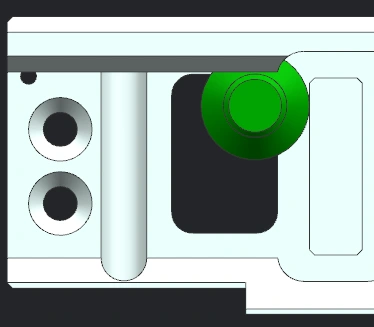

A 0.2 mm step between the dovetail groove and adjacent boss conflicts with the illustrated cutter approach.
View case
DFM review proposal
Review seal-groove geometry for machining and function
Tool entry is constrained by the original groove geometry. The reviewed machining approach requires an additional opening.
View case
A356-T6 selective surface finishing

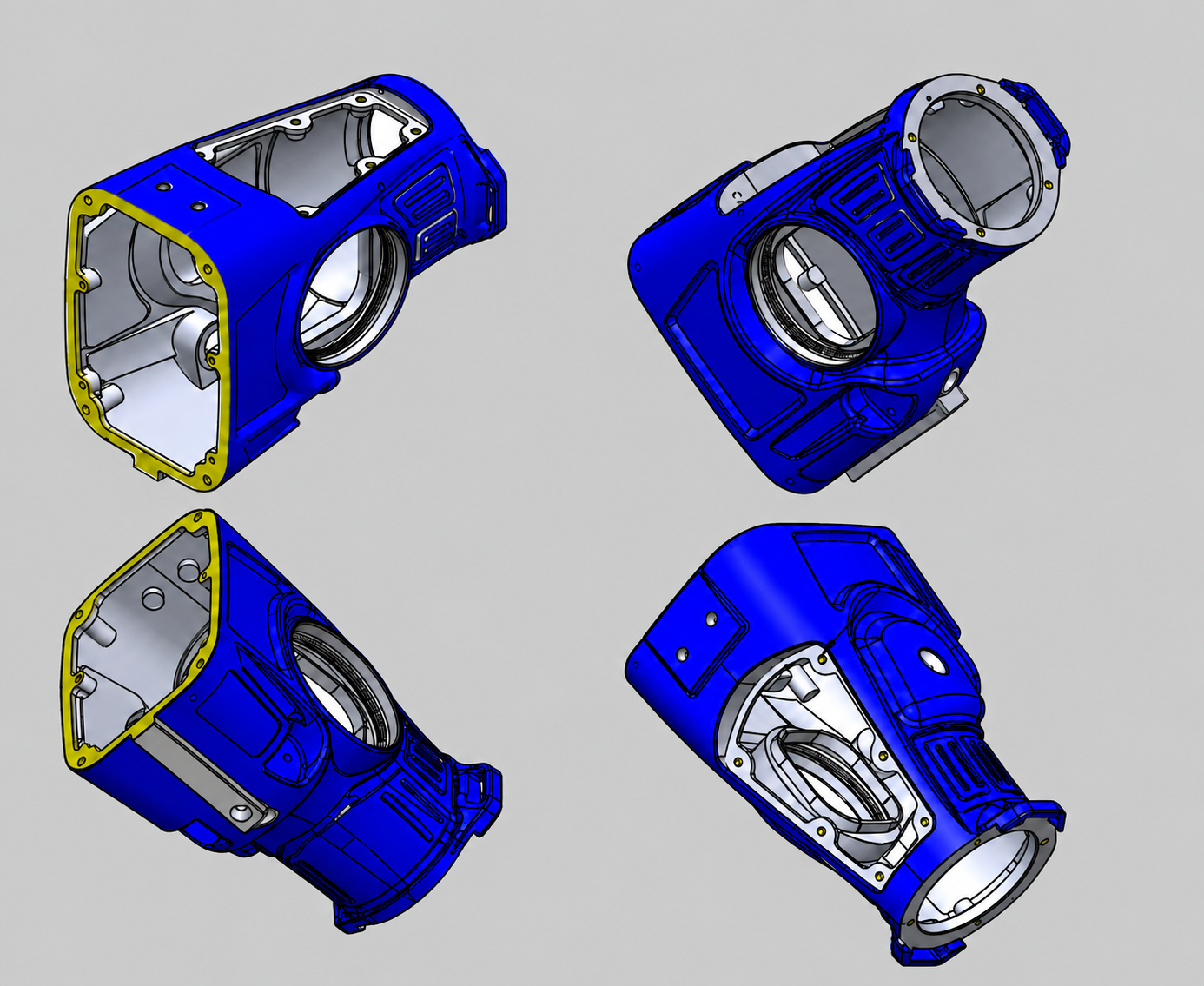

Coordinating pretreatment, selective masking, thread inserts and inspection for an A356-T6 part requiring conversion coating, hard anodizing and paint.
View case
Die-casting project coordination
The die-casting project illustrates supplier resource integration, technical communication and project coordination. The scope of support is agreed around the part requirements and project stage.
