Review proposal · not a completed production or validation result

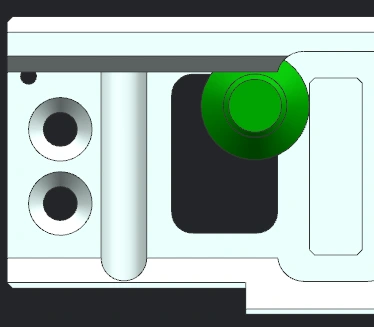

Cutter entry position
Cutter entry position

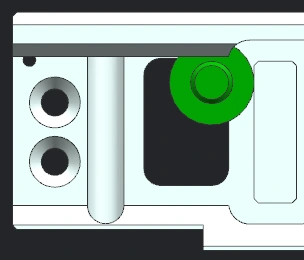

Plan view of the alternative cutter approach
Plan view of the alternative cutter approach
0.2 mm step and cutter position
0.2 mm step and cutter position
Geometry review with a T-slot cutter
Geometry review with a T-slot cutter
02 / TOOL ACCESS

Check tool access around the dovetail groove

Design issue
A 0.2 mm step between the dovetail groove and adjacent boss conflicts with the illustrated cutter approach.
Manufacturing impact
The reviewed dovetail and T-slot cutter approaches show access limitations that need resolving before sampling.
Proposed change
Identify the constrained geometry, request a design revision and keep the 2D drawing and 3D model aligned.

Deliverables: annotated drawings, a DFM issue list, proposed changes and decisions to confirm.

DFM proposal excerpts. These reviews and proposed changes do not represent completed production or validated sealing performance.
